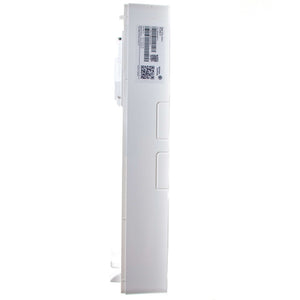

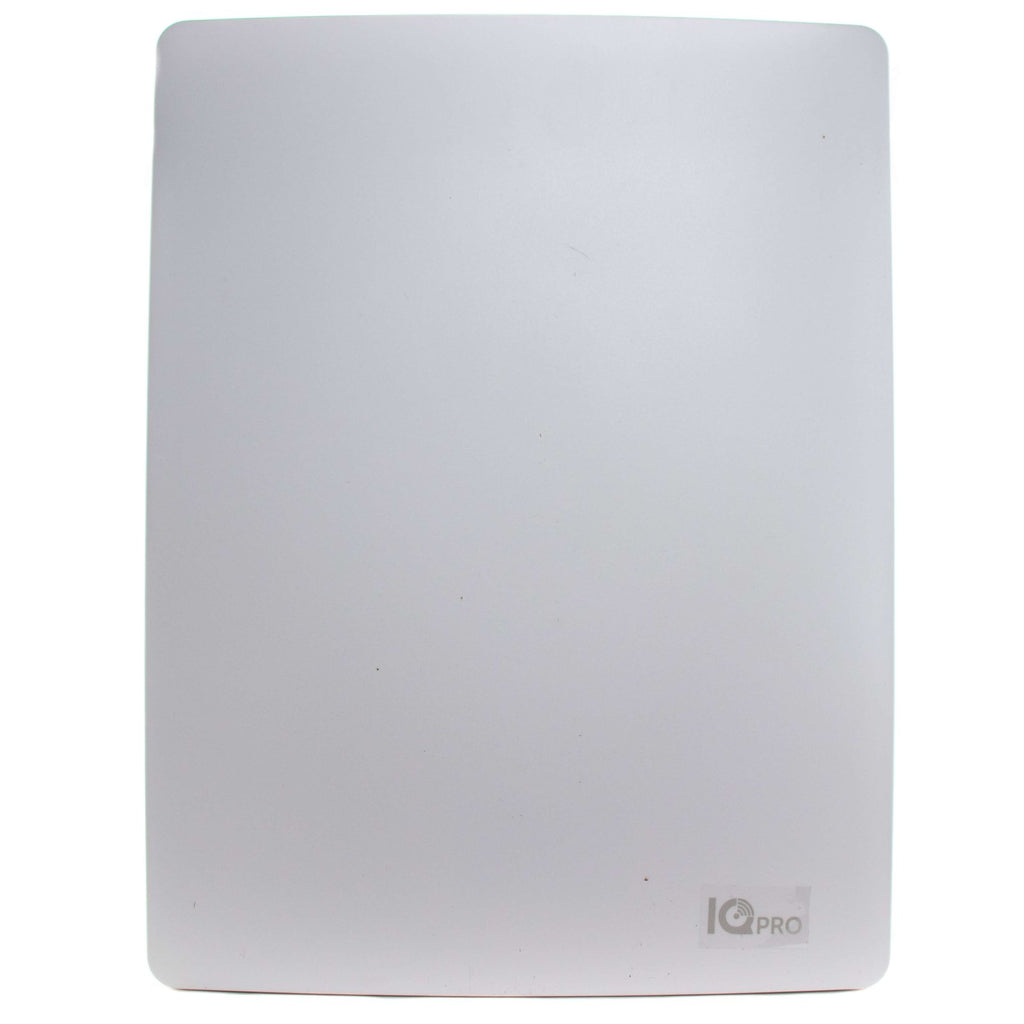

DSC Qolsys IQ Pro IQPR017P Power G Panel In Plastic Cabinet

DSC Qolsys IQ Pro IQPR017P Power G Panel In Plastic Cabinet

The IQ Pro: a culmination of Johnson Control's foremost Security System technologies. By combining the reliability of DSC's hardwired capabilities with the incredibly user-friendly IQ Panel interface and programming, the IQ Pro promises to deliver unparalleled security for your home or business. With integrated PowerG wireless technology coupled directly with a DSC-style main board for hardwired sensors, the IQ Pro will give you access to almost any sensor type you desire. On top of that, the IQ Pro comes with a dual-path cellular and IP (ethernet and Wifi) communicator built directly into the system allowing you to utilize Alarm.com's award-winning services for your setup. Incorporating the Qualcomm Snapdragon 8 core Processor the IQ Pro provides lightning-fast response times, and includes 16 GB of NAND Flash memory to reliably store your programming.

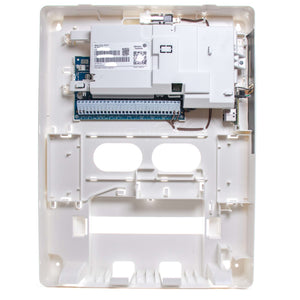

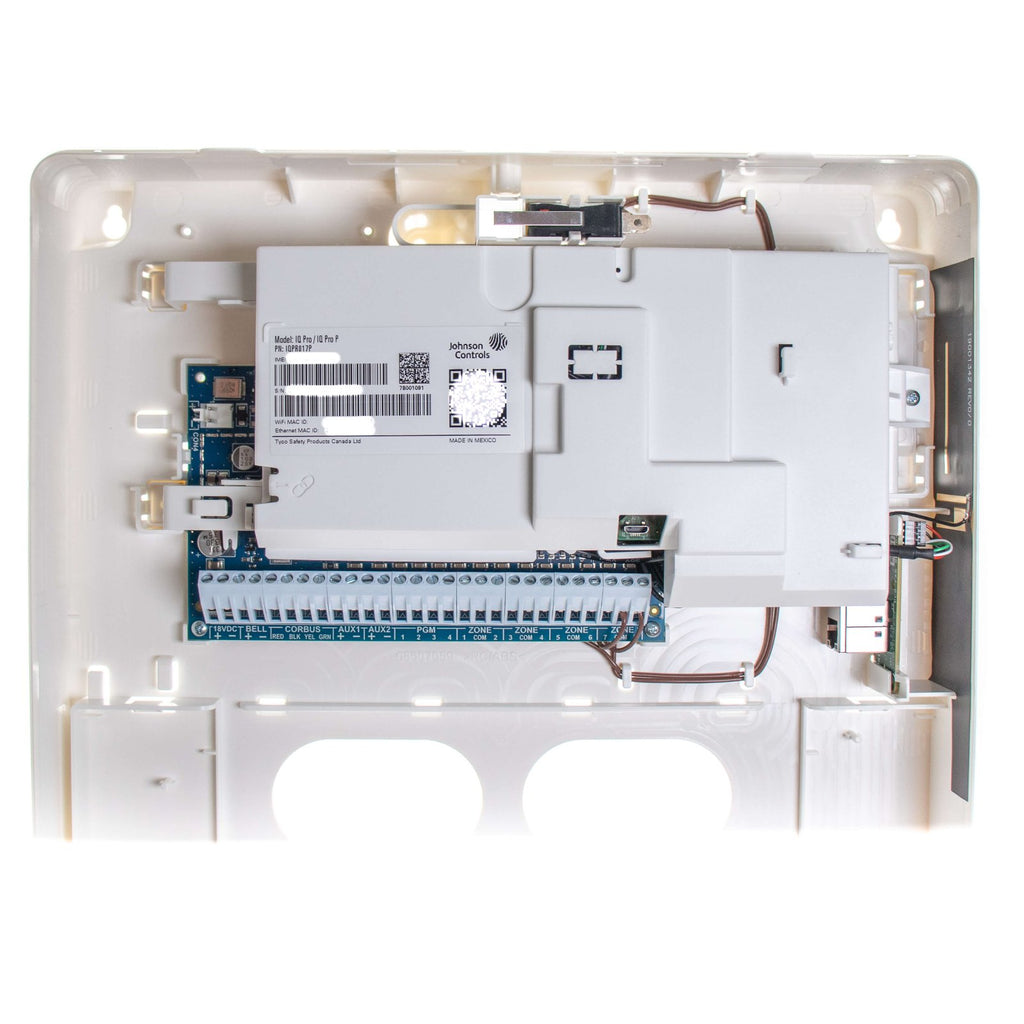

The IQ Pro is able to handle up to 128 hardwired or wireless alarm zones across up to 8 partitions, featuring full supervision of both HSM2108 hardwired zone expanders, and PowerG's secure 2-way wireless technology. The main board of the IQPRO17P comes with 8 zone inputs available for use, and the plastic cabinet provides space for up to 4 HSM2108s to be added without needing an additional cabinet. If needed for larger commercial applications, the IQ Pro can be programmed with up to 1000 total user codes, including guest and duress codes if required. With support for 16 wired DSC NEO keypads, and 5 wireless keypads, you'll have the option to set up as many interfaces as needed for your home or business. Included in the compatible wireless keypad roster is the IQ Remote PG, giving you seamless touchscreen control over long distances using PowerG wireless technology. In addition, the IQ Pro can handle up to 148 total programmable outputs or PGMs. 4 PGMs are built into the main board, and you can add 16 high-current PGMs by adding up to 4 HSM2204 Power Supplies, as well as 128 low-current PGMs using the HSM2208 expander modules. For sirens, the IQ Pro offers a bell circuit capable of up to 700mA of continuous output with an upper current limit of 2 total Amps while the system is in alarm for hardwired applications. Along with that, you can also use wireless PowerG sirens such as the PG9911 Outdoor siren and strobe combo. The IQ Pro can handle up to 32 wireless keyfobs, along with up to 120 wireless panic fobs, like the PG9938, to use in prime locations around even the largest of buildings for an instant silent or audible alarm trigger. On top of all of the standard sensor options, the IQ Pro is also able to utilize MX addressable technology. This means you can set up addressable loop sensors to condense unwieldy wiring requirements down into a single circuit. Please keep in mind we do not carry the MX sensors, so we are not able to provide support on them if you decide to use them with your IQ Pro system.

While that may seem like a lot, the IQ Pro's simple design and easy-to-use interfaces will not leave you feeling overwhelmed when installing it. Programming for the IQ Pro is handled via the IQ Installer App, providing a modern feel and an easily understandable process for setting up your system. With access to all of the different DSC and IQ keypads out there, you'll be able to customize your experience to cater to the feel you desire in your home while having the best security system protection available to date. The IQPRO17P, the model listed here, is the IQ Pro with only the PowerG wireless card in a plastic cabinet, however, there are other options available for special order. The IQ Pro can be outfitted with other legacy wireless cards giving you the ability to incorporate existing wireless sensors. Other wireless cards include the 319MHz for Qolsys S-line sensors as well as legacy Interlogix sensors. A 345MHz card for legacy Honeywell and 2GIG sensors, and last but not least the 433MHz wireless card for legacy DSC PowerSeries sensors. You also have the option to get the IQ Pro system in a metal cabinet similar to normal wired systems if you wish. All of the IQ Pro options mentioned here do come with an added cost as required for the additional components, so if you would like a legacy SRF card added, please reach out to us through chat or the email us link below and we will provide pricing and details.

IQPRO17P Reference Manual
IQPRO17P User Manual
IQPRO17P Spec Sheet
