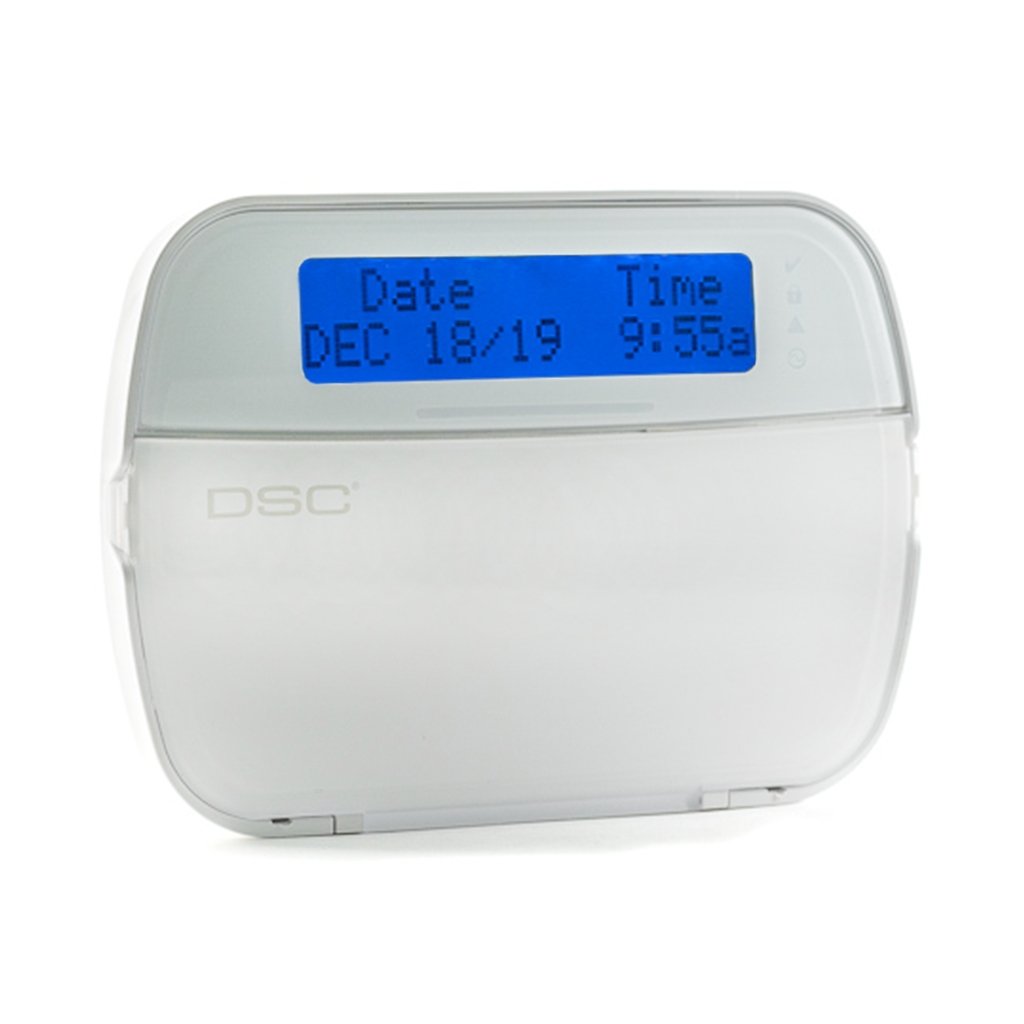

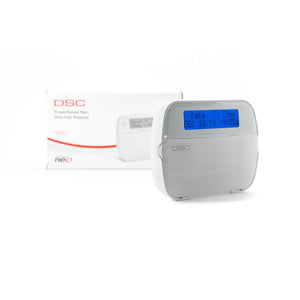

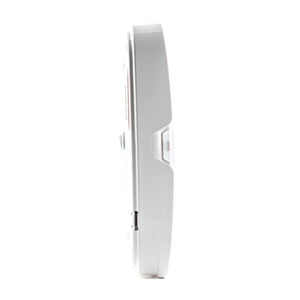

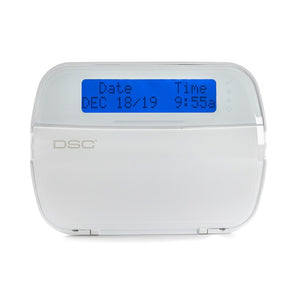

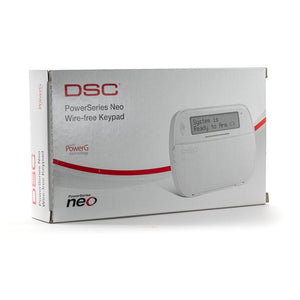

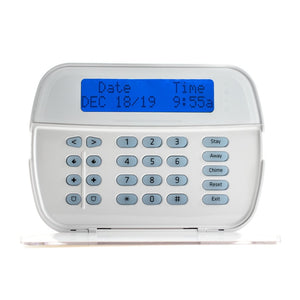

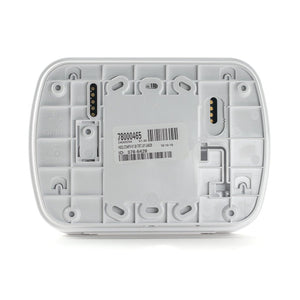

DSC PowerSeries NEO HS2LCDWF9ENGN Wireless Alpha-Numeric LCD PowerG 2-Way Keypad w/ English function keys

Select Options:

$171.95

Quick Overview

The base-level wireless programmable keypad for the DSC NEO, the HS2LCDWF9ENGN allows wireless access to your DSC NEO. This keypad can be used in conjunction with the HSM2HOST and PowerG devices to essentially create a fully wireless alarm system out of the DSC NEO. You must have a wireless transceiver on your system to use this keypad. Use the option to the right to add the optional power adapter to keep your keypad running on AC power rather than batteries.

In Stock
Add to Wishlist

DSC PowerSeries NEO HS2LCDWF9ENGN Wireless Alpha-Numeric LCD PowerG 2-Way Keypad w/ English function keys

This latest version with the "N" suffix is now compatible with both the DSC PowerSeries Neo and the PowerSeries Pro alarm panels.

PowerSeries NEO keypads have quite a few features that make them a great add-on to your NEO burglary detection system. Some of these features include five programmable keys for instant one-button activation of important NEO system functions. The keypads also feature a quick exit feature that alleviates the user's need to disarm and then rearm the system whenever they leave the building.

The HS2LCDWF9ENGN full message keypad is the newest in alpha-numeric readout keypads for the DSC NEO burglary systems. These keypads are what we recommend for a primary keypad because of the ability of this keypad to read out alpha and numeric characters on the screen. Since the DSC system's programming is in alpha-numeric characters, this keypad will make your programming job ten times easier than using one of the ICN keypads to program with. This LCD keypad is completely wireless, with an optional power transformer to plug into a nearby wall outlet. It must be used in conjunction with a PowerG transceiver, either built into a hardwired keypad or an HSM2HOST9.

If you want to provide power to this keypad instead of just using batteries, you'll want to use the 9VADAPTERUS Power Supply.

Specifications:
Dimensions:........ (L x W x D): 168mm x 122mm x 20 mm
(6 1/16" x 4 7/16" x 13/16")
LCD Viewable Area: .. 99 mm x 24 mm (3 9/10" x 15/16")
Current Draw: ............................................125 mA (Max)
HS2LCD/HS2LCDP/HS2ICN/HS2ICNP/
HS2LED............................................................100 mA
HS2LCDRF/HS2LCDRFP/HS2ICNRF/
HS2ICNRFP........................................................60 mA
Voltage: .................................................12 VDC Nominal
Operating Environment: ... -10°C to 55°C (14°F to 131°F)
Relative Humidity: ............................................. 5 to 93%

DSC HS2LCDWF9ENGN Installation manual
DSC HS2LCDWF9ENGN Specifications sheet

QUESTIONS & ANSWERS

Ask a Question
  • What is the expected battery life if not using the AC adapter option

    Because the answer to your question is completely dependent on the amount the keypad is used, there is no good exact answer. We have seen the batteries for this keypad last anywhere from 2 weeks up to 6 months in some cases when the keypad is never touched. It is always advised that you use the adapter if possible.

Features

Menu programming
Up to 128 hardwired or wireless zones supported
Modern, slim-line landscape keypad
White backlit keys
Blue LCD display
5 programmable function keys
Input/Output terminal
Fire, medical and panic keys
Adjustable backlight and keypad buzzer
Dual wall-mount and front cover tamper
Available with English function keys
