DSC PowerSeries NEO HS2LCDRFP9ENGN LCD w/ English function keys, Built-in PowerG Transceiver and Prox Support
Add to Wishlist
DSC PowerSeries NEO HS2LCDRFP9ENGN LCD w/ English function keys, Built-in PowerG Transceiver, and Prox Support
This latest version with the "N" suffix is now compatible with both the DSC PowerSeries Neo and the PowerSeries Pro alarm panels.
PowerSeries NEO keypads have quite a few features that make them a great add-on to your NEO burglary detection system. Some of these features include five programmable keys for instant one-button activation of important NEO system functions. The keypads also feature a quick exit feature that alleviates the user's need to disarm and then rearm the system whenever they leave the building.

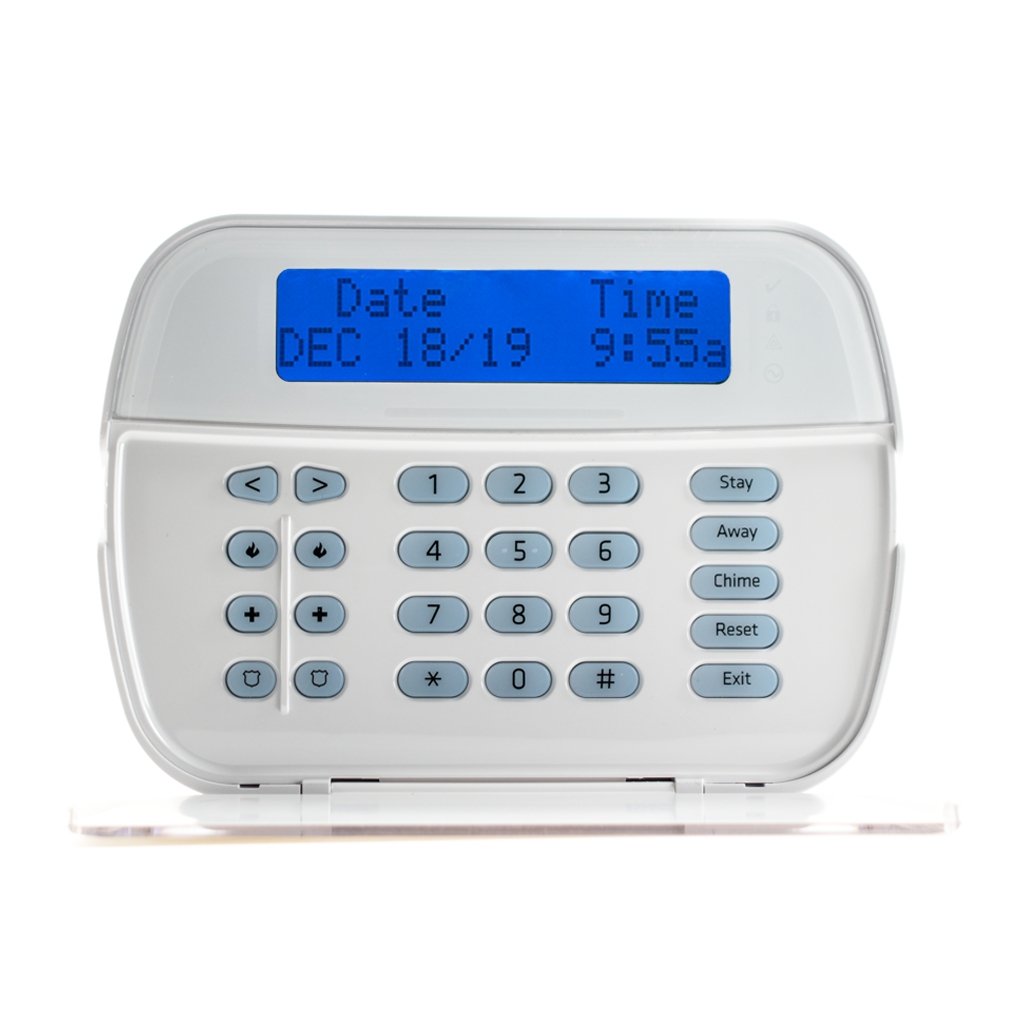

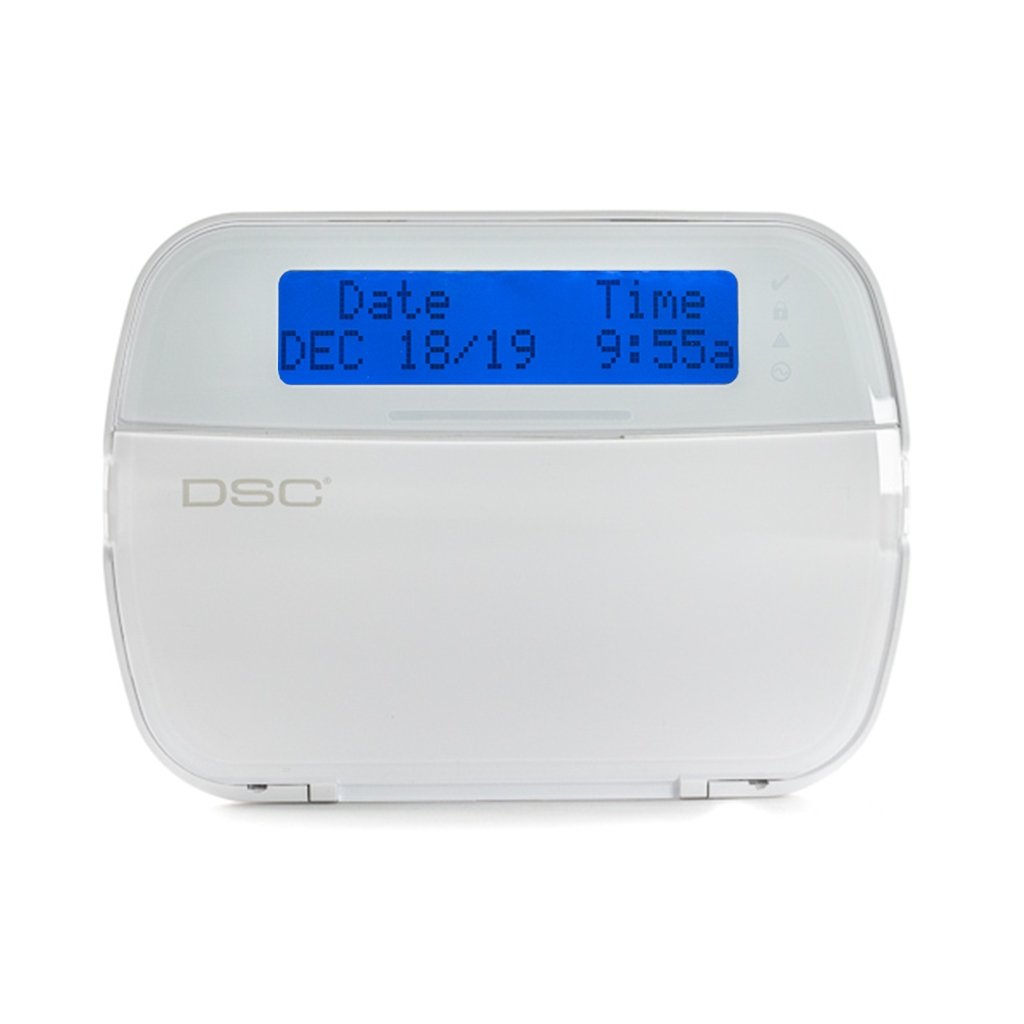

The HS2LCDRFP9ENGN full message keypad is the newest in alpha-numeric readout keypads for the DSC NEO burglary systems. These keypads are what we recommend for a primary keypad because of the ability of this keypad to read out alpha and numeric characters on the screen. Since the DSC system's programming is in alpha-numeric characters, this keypad will make your programming job ten times easier than using one of the ICN keypads to program with. Also, because of this keypad's 'ENG' designation, you will see English words on the function buttons instead of having icons for them. This LCD keypad includes a built-in wireless receiver used to receive transmissions from DSC's new Power G wireless devices. If you can't wire anything else to the system, you can add more devices.
The DSC HS2LCDRF9PENGN also features a built-in proximity tag reader so that you, and other users, can use the tags to arm and disarm the system without having to punch in a code. The keypad will come with one proximity tag, and if you need to add more, check out the MPT8PK 8 pack we offer.
NOTE: You can only have one HS2LCDRF9ENGN or HS2LCDRF9PENGN model keypad per system. If you need a secondary keypad that is just like this one, but without the wireless receiver, choose the HS2LCDENGN or HS2LCDPENGN.
Specifications:
Dimensions:........ (L x W x D): 168mm x 122mm x 20 mm
(6 1/16" x 4 7/16" x 13/16")
LCD Viewable Area: .. 99 mm x 24 mm (3 9/10" x 15/16")
Current Draw: ............................................125 mA (Max)
HS2LCD/HS2LCDP/HS2ICN/HS2ICNP/
HS2LED............................................................100 mA
HS2LCDRF/HS2LCDRFP/HS2ICNRF/
HS2ICNRFP........................................................60 mA
Voltage: .................................................12 VDC Nominal
Operating Environment: ... -10°C to 55°C (14°F to 131°F)
Relative Humidity: ............................................. 5 to 93%
DSC HS2LCDRFP9ENGN Installation manual
DSC HS2LCDRFP9ENGN Quick manual
DSC HS2LCDRFP9ENGN Specifications sheet
QUESTIONS & ANSWERS
Ask a Question-
How soon will this keypad be available? Does this include any proximity tags?
We still have no ETA on availability for this keypad as of 2-5-24. This keypad does include one prox tag with it.
Features
Menu programming
Up to 128 hardwired or wireless zones supported
Modern, slim-line landscape keypad
White backlit keys
Blue LCD display
5 programmable function keys
Proximity tag functionality (1 tag included)
Input/Output terminal
Fire, medical and panic keys
Adjustable backlight and keypad buzzer
Dual wall-mount and front cover tamper
Available with English function keys
